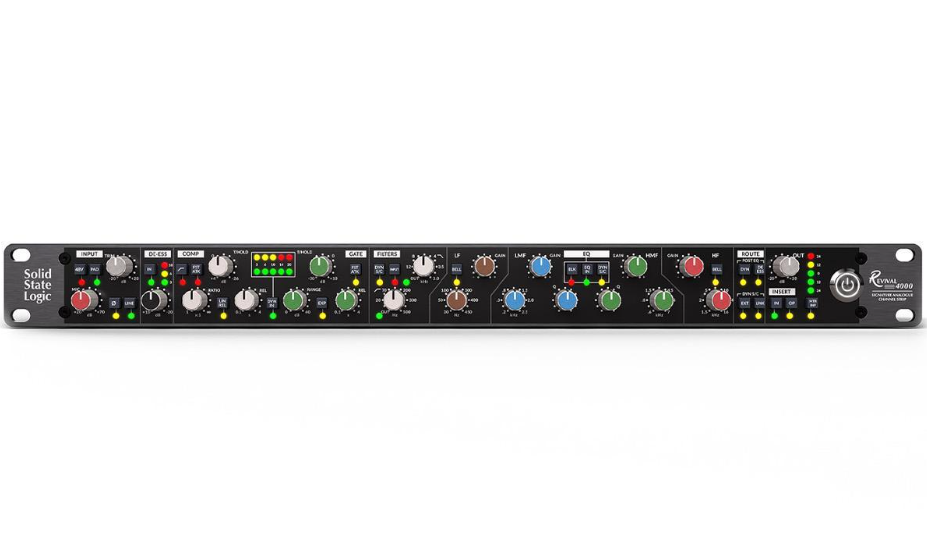

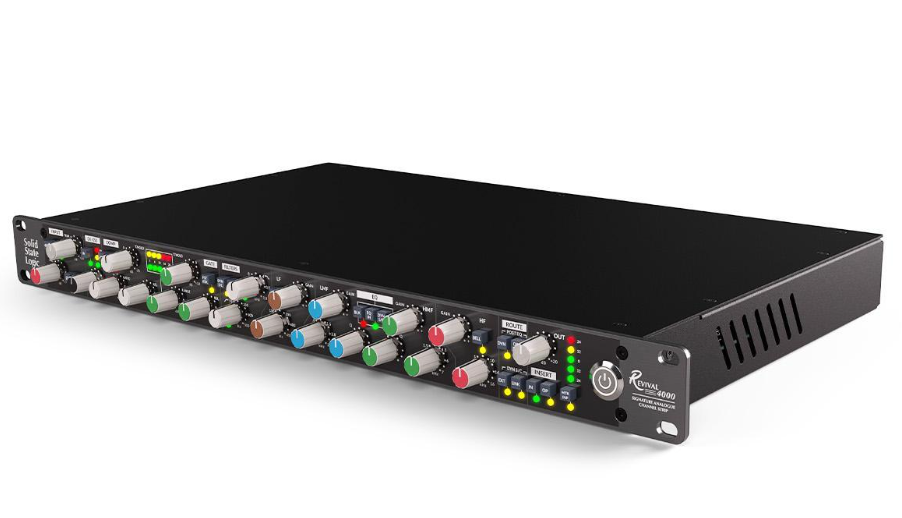

SSL Revival 4000 Channel Strip

Musical one-knob 4000 B De-Esser section.

Ultimate 4000 E Series Dynamics section:

• Discrete Class A VCA compressor section.
• Soft or Hard Knee modes.
• Fast Attack on/off.
• Logarithmic or Linear Release Modes

Classic Gate/Expander Section

• With Fast Attack on/off.

External sidechain (key) input.

Dynamics sidechain link – allows two Revival 4000 compressors to work as a stereo pair.

Classic 4-band SSL EQ:

• Fully parametric mid-bands.
• Switchable ’Brown Knob’ 02 and ’Black Knob’ 242 EQ Circuits.

High and Low Pass Filters:

• Brown 02 mode – 12 dB per octave HPF & LPF.
• Black 242 mode – 18 dB per octave HPF & 12 dB per octave LPF.

Balanced Insert point for connecting external devices into the signal path.

Extensive ‘to sidechain’ functionality:

• Filters to Dynamics sidechain.
• EQ to Dynamics sidechain.

Flexible process-order routing:

• Filters to input, Dynamics and De-Ess post-EQ options, Insert to output.

Line Output Trim.

Switchable input/output metering.
